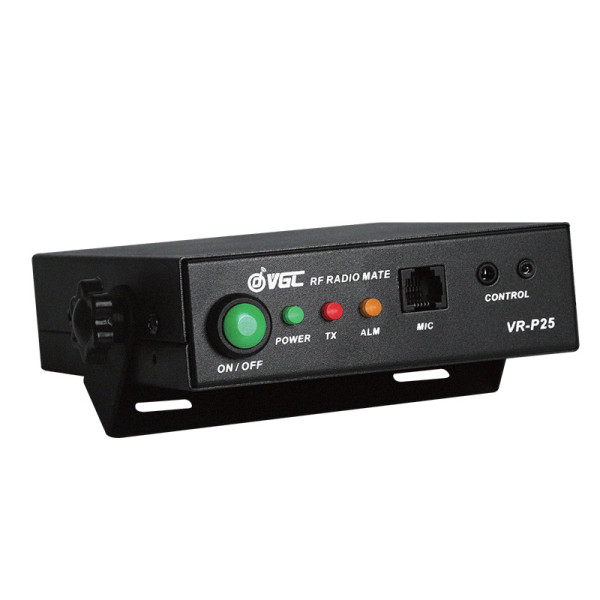

VR-P25 Series Power Amplifier

VR-P25 Series Power Amplifier

Item NO.: VR-P25
Frequency Range
136-174MHz 220-225Mhz 350-390MHz 400-480Mhz
Format
VR-P25 VR-P25D
Inquiry

Detail

  • ★ What is it? VR-P25UD is a lightweight portable handheld RF amplifier. With this amplifier you can easily extend the communication range of a handheld radio.
  • ★ Use the amplifier to create: a mobile device with a vehicle-mounted antenna, a powerful field radio with a field-installed antenna or a base station with an antenna on a mast. Your handheld radio connects and disconnects in seconds.
  • ★ With an input power of 2-6 watts, up to 40 watts of output power can be achieved.
  • ★ Suitable for TDMA mode in addition to FDMA (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, DMR Tier II). Supports analog and digital handheld radios, e.g. Baofeng, Radioddity, Kenwood, Yaesu, Motorola DMR radios.
  • ★ Certifications: All VGC amplifiers have been CE, FCC certified.
  • FCC ID: ZVM-VR-P25U. CE ID: MOST18EE040578

VR-P25  is a lightweight portable handheld RF amplifier.

Features:

- Automatic switching
Between analog and digital modes. VR-P25UD is also suitable for TDMA signals in addition to FDMA (DMR Tier II and P25 Phase2)

- High output power up to 40 watts
With an input power of a handheld radio of 2-6 watts - up to 40 watts output power is possible.

- UHF band
The amplifier VR-P25UD can support UHF (400-470MHz)

- Compact design
With a compact size it is particularly suitable for outdoor use such as Field-day or for mounting in the car

- Certifications:
All VGC amplifiers have been certified by CE, FCC.

-Multi-functional:
Includes voltage stabilizer, overheating protection, RF sensing, auto power off, harmonic filters.

- Integrated speakers and microphone connection

- Status display about the current operating state

Three Primary Modes of Amplification


Radio Controlled
Connect to the antenna output of the handheld transceiver to the RF-IN connector on the rear panel of the amplifier with the Radio to Amplifier RF cable. Transmit and receive right on the Handheld radio - while your output signal is amplified.




Accessory Controlled
Connect to the antenna output of the handheld transceiver to the RF-IN connector on the rear panel of the amplifier with the Radio to Amplifier RF cable. Connect a speaker microphone, headset, or compatible accessory to the radio. Transmit and receive right on the accessory connected to the Handheld radio - while your output signal is amplified.



Amplifier Controlled
Connect the speaker microphone to the MIC jack on the front panel of the amplifier. Connect to the antenna output of the handheld transceiver to the RF IN connector on the rear panel of the amplifier with the Radio toAmplifier RF cable. Connect the accessory port of your radio to the Control jack on the front panel of the amplifier using the Amplifier Control Cable. Transmit and receive using the speaker microphone on the amplifier while incoming audio is relayed through the loud amplifier speaker.


Specifications:
Frequency range: 400-470MHz
Power supply: 13.8 VDC (± 15%), 5.5 A maximum
Input RF power: 2 - 6W (± 10%)
Output RF power: 20 - 40W
Size: 5.5 in D x 4.5 in. W x 1.4 in. H (135 mm D x 115 mm W x 36 mm H)
Dead weight: 1.5 lbs. (680 g)

Package Content:
1 x VGC VR-P25U amplifier
1 x Speaker microphone
1 x SMA female cable
1 x Power supply
1 x Mounting bracket
1 x Remote control cable (standard K1)
1 x Screw sets
1 x User manual

VR-P25V VR-P25U VR-P25-220 VR-P25DV VR-P25DU
Amplified Frequency Range 136 – 174 MHz 400 – 480 MHz 220 - 225 MHz 136 – 174 MHz 400 – 480 MHz
Input RF power 2 - 6W (±10%) 2 - 6W (±10%) 2 - 6W (±10%) 2 - 6W (±10%) 2 - 6W (±10%)
Output RF power (Based on Input Power) 20 - 40W 20 - 40W 30 - 50W 20 - 40W 20 - 40W
Analog FM, P25 Phase 1, C4FM (System Fusion), D-Star, NXDN, IDAS, dPMR, and MPT1327 modes ✓ ✓ ✓ ✓ ✓
DMR and P25 Phase 2 modes - - - ✓ ✓
Out-of-Band Transmit (Pass-through the HT's power to the external antenna while amp is powered off) ✓ ✓ ✓ - -
External Antenna Connector SO-239 SO-239 SO-239 SO-239
